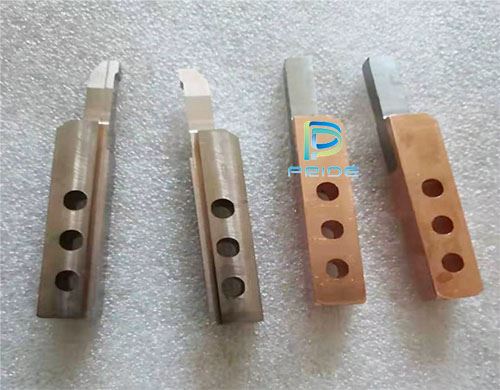

Tooj liab tungsten electrode

Tooj liab tungsten electrode

Hlau txiav tooj liab-tungsten electrodes yog cov khoom muag zoo tshaj plaws nyob rau hauv qhov chaw vuam thiab EDM daim ntawv thov, tiv thaiv kev tawg thiab muab kev ua tau zoo dua. Peb qhov tshwj xeeb tsis muaj kev sib koom ua ke (NDB) thev naus laus zis tsim cov tooj liab-tungsten electrodes uas muab cov qib siab ntawm thermal conductivity thaum txo qis hnav thiab txuas lub neej ntawm electrode. Qhov tshwm sim yog qhov zoo tshaj plaws tsim khoom thiab vuam zoo rau koj daim ntawv thov electrode.

Xaiv peb cov tooj liab-tungsten electrode Cheebtsam

Peb peb hom tooj liab-tungsten electrodes ua ke lub cev muaj zog ntawm ob cov ntaub ntawv siv complex alloys. Peb C10B2 electrode muaj qhov hnyav piv ntawm 10% tooj liab mus rau 90% tungsten, lub ntiajteb txawj nqus ntawm 16.8 thiab hardness ntawm 330 HV. Raws li International Standard for Annealed Copper (IACS), qhov conductivity ntawm cov khoom yog 30%; Nws resistivity yog 5.7x10 ^-8^ ω m. Peb C30A2 electrode yog 30% tooj liab thiab 70% tungsten, muaj ib tug tshwj xeeb lub ntiajteb txawj nqus ntawm 14.2, ib tug hardness ntawm 225 HV, ib tug conductivity ntawm 48%, thiab ib tug resistivity ntawm 3.5x10 ^-8^ ω m. Peb 50-50 tooj liab-tungsten electrode C50A2 muaj ib qho kev nqus ntawm 12.1, hardness ntawm 160 HV, ib tug conductivity ntawm 63%, thiab ib tug resistivity ntawm 2.7 x10^-8^ ω m. (rau kev sib piv, cov khoom siv chromium-tooj ​​liab yog 1% tooj liab, uas muaj qhov tshwj xeeb lub ntiajteb txawj nqus ntawm 8.9, hardness ntawm 150 HV, ib tug conductivity ntawm 80%, thiab ib tug resistivity ntawm 2.1 x10^-8^ ω m.

Kev tsim qauv ntse txhais tau tias vuam zoo dua thiab lub neej ntawm electrode ntev dua

Cov kev ntsuam xyuas qhia tau hais tias peb cov tooj liab-tungsten electrode nthuav tawm zoo heev hardness thiab tsawg tsawg alloy tsim ntawm qhov kub thiab txias piv rau electrodes siv alloys xws li chromium-tooj ​​liab. Qhov tshwm sim yog txhim kho kev ua tau zoo yam tsis muaj deforming lub electrode los yog lo rau lub workpiece.

Peb cov cop-tungsten electrode tsim thiab kev tsim kho tsis tsuas yog siv cov khoom tsim nyog thiab cov lus qhia tseeb thiab tuav cov ntaub ntawv, tab sis kuj siv peb txoj kev sib txuas NDB hauv electrode fabrication los xyuas kom meej thermal conductivity thiab ruaj khov zoo. Cov txheej txheem NBD no ua rau thaj chaw sib txuas ntawm yuav luag 100% piv rau cov pa brazing thiab nias-fitting. Qhov kev sib raug zoo zoo no ua rau cov electrodes muab kev ua haujlwm txias txias tom qab vuam nres, ua rau muaj kev txhaj tshuaj ntau ntxiv thiab tsim khoom. Raws li cov kev siv vuam, peb txoj kev NDB txuas ntxiv kev pab cuam lub neej ntawm cov electrode los ntawm ib qho ntawm kaum.

Ntau yam ntawm kev siv vuam tsis siv neeg

Nrog rau kev tsim qauv ntse raws li peb cov kws tshaj lij nyob rau hauv tungsten thiab nws cov alloys, peb cov khoom siv hluav taws xob zoo tshaj plaws tooj liab-tungsten electrodes yog tsim rau ntau yam kev kub ceev, automated vuam kev ua haujlwm. Rau brazing tooj liab thiab tooj liab alloys, peb cov cop-tungsten electrodes muab zoo heev electrode thermal tshuav nyiaj li cas rau daim ntaub ntawv xws li motors, tsheb, thiab high-ceev chaw welding ntawm tej hlau harness siv complex los yog yooj yim hlau harness. Lwm daim ntawv thov suav nrog cov kab hloov pauv rau cov pob roj teeb thiab cov khoom siv hluav taws xob rau cov kab hluav taws xob ntau lawm thiab cov hluav taws xob hloov hluav taws xob. Ntxiv nrog rau kev siv tooj liab xov hlau thiab cov khoom siv hluav taws xob, peb cov khoom siv hluav taws xob kuj tseem siv rau kev tsim cov roj teeb lithium ion thiab nickel hlau hydride roj teeb, nrog rau kev vuam ntawm cov roj teeb raj.

Thov hu rau peb yog tias tsim nyog: zhang@pride-cnc.com
